Trackside station

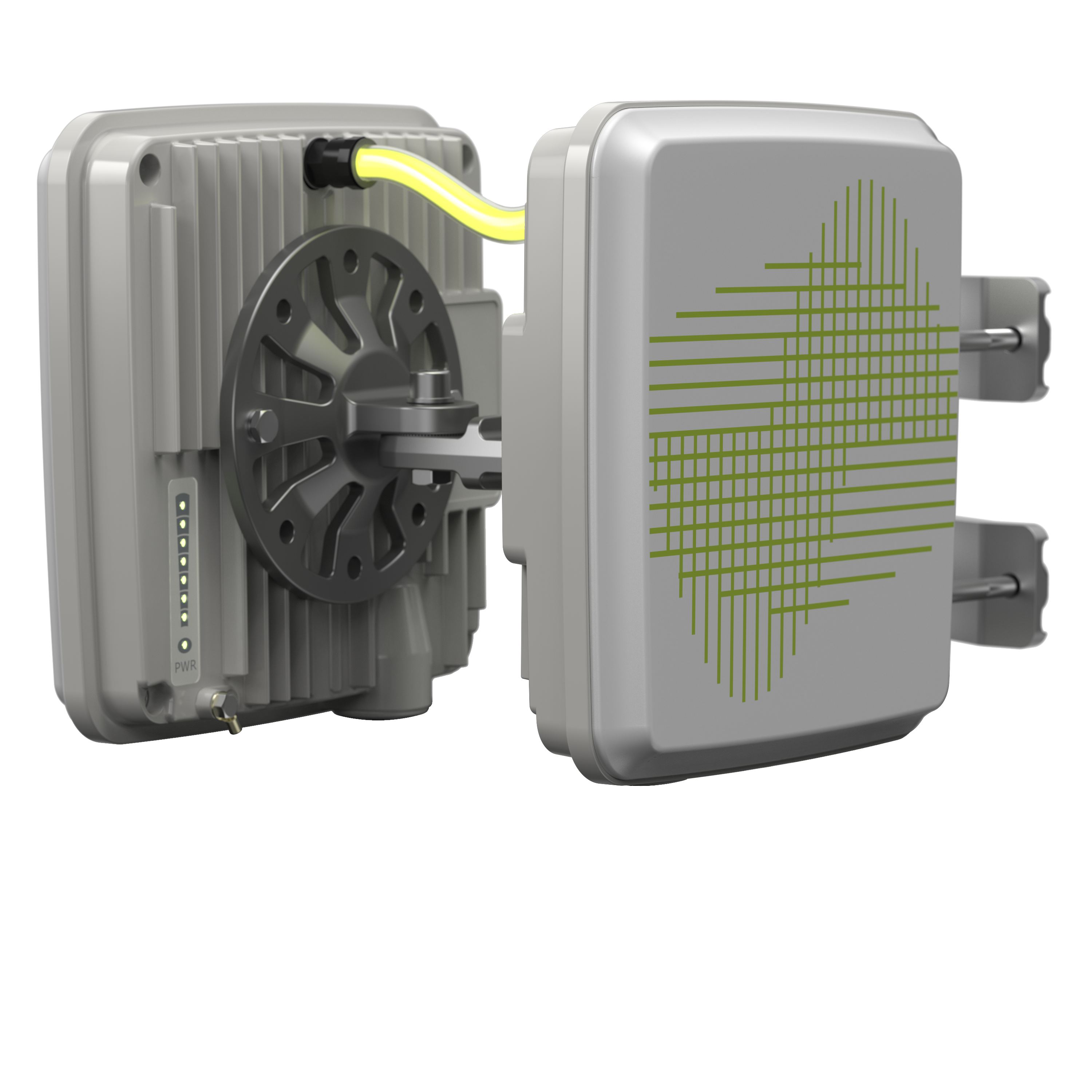

A dedicated railway communication unit designed to provide seamless train-to-ground connectivity and reliable coverage across diverse track profiles.
Installed on poles along the railway, it uses dual integrated antennas with independently adjustable alignment to ensure optimal signal direction for both straight and curved sections - eliminating the need for multiple antenna types. The custom pole-mount kit simplifies deployment and ensures precise positioning. Operating in the extended 4900–6425 MHz frequency range, the unit supports regulatory flexibility and spectrum availability.
Net Throughput:
Up to 670 Mbps (80 MHz)
Up to 370 Mbps (40 MHz)
Up to 160 Mbps (20 MHz)
Up to 370 Mbps (40 MHz)
Up to 160 Mbps (20 MHz)
Transmit Power:
Up to 25 dBm
Antenna Gain:
2 × 18 dBi (each antenna), 18° × 18° beamwidth
Frequency Range:
4900–6425 MHz
Channel Width Options:
20 / 40 / 80 MHz
